PG card for AC inverters (AC drives, frequency converters)

For the open collector, voltage, push-pull (complementary) type motor speed feedback encoder, which power supply is +12V to +24V, please adopt the V&T EcoDriveCN® PG feedback card EX-PG01.

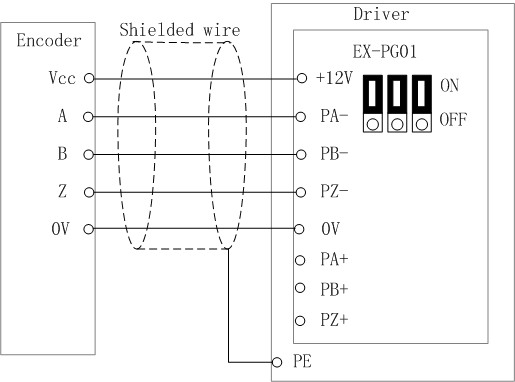

Connection diagram for EX-PG01 PG card with internal power supply (Jumper toggled to ON side)

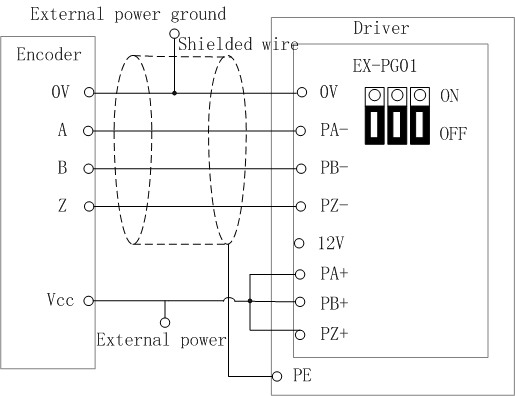

Connection diagram for EX-PG01 PG card with external power supply (Jumper toggled to OFF side).

Don't know how to install PG card for AC drives? Don't worry! Just watch the video for how to install PG card.
