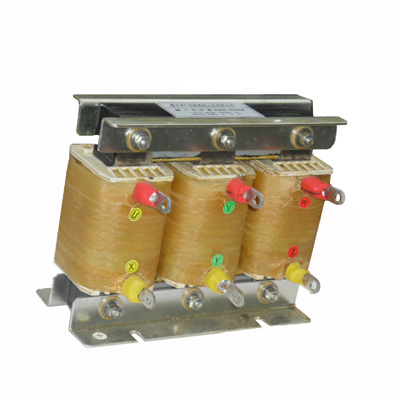

3 phase 380v Input/Output AC Choke (reactor)

AC choke
V&T Technologies Co.,Ltd. EcoDriveCN® three phase 380v Input/output AC reactor (choke)

description     Model

Functions of AC reactor (choke):
1.Reduction of harmonics , Improvement of the power factor
2.Over-voltage restriction
3.Reducing the stress caused by noise to motor, extended the life span of motor
4.Improvement of low-frequency conduction emission/sensitivity

Technical specifications of this AC choke (reactor):
1.Rated Voltage: 440VAC
2.Hipot test voltage
3.Operating Frequency: 50/60 Hz
4.Insulation class: H
5.Rated Current: 3A ~ 800 A
6.Altitude: <1000 meters
7.Ambient temperature: -25ºC~ 40ºC
8.Reactor impedance: 2%
9.Protection category: IP00
