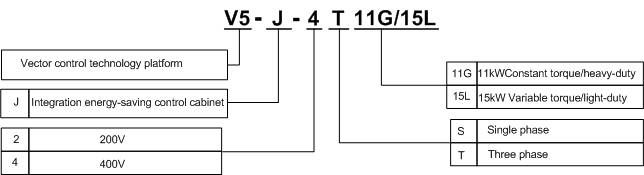

V5-J integration energy-saving sensorless vector AC drive with cabinet
V&T EcoDriveCN® V5-J energy-saving AC variable speed drive cabinet

|
Energy efficiency retrofits of plastic injection moulding machines
Features of 380VAC-480VAC energy-saving sensorless vector AC drives cabinet:
| Power(kW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | |
| Motor power(kW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | |
| Output | Voltage(V) | Three phase 0~rated input voltage | ||||||||||||||
| Rated current(A) | 2.5 | 3.8 | 5.5 | 9 | 13 | 17 | 24 | 30 | 39 | 45 | 60 | 75 | 91 | 112 | 150 | |
| Overload capability | 150% 1minute, 180% 10 second, 200% 0.5 second, interval: 10 minutes (inverse time lag feature) | |||||||||||||||
| Input | Rated voltage/current | three phase 380V~480V; 50Hz/60Hz | ||||||||||||||
| Allowable voltage range | 323V~528V; Voltage unbalancedness <=3%; allowable frequency fluctuation : +-5% | |||||||||||||||
| Rated current (A) | 3.5 | 6.2 | 9.2 | 14.9 | 21.5 | 27.9 | 39 | 50.3 | 60 | 69 | 86 | 104 | 124 | 150 | 201 | |
| Braking unit | Built-in as standard | Built-in is optional | ||||||||||||||
| Protection class | IP20 (IP65 customized) | |||||||||||||||
| Cooling mode | Self-cooling | Forced air cooling | ||||||||||||||
Access our popular retrofitting to plastic injection mould machines and die casting machines with V5-JY vector control drive cabinet for energy saving .
