V5-JY integrated vector control drive cabinet for energy saving

vector control drive cabinet
V&T EcoDriveCN® V5-JY specific vector control drive cabinet for energy conservation

description     technical      Documents

Energy efficiency retrofits of plastic injection moulding process

failure rate: < 0.15%, just the same as other world-class traditional brands, such as Siemens, ABB, Emerson, Schneider, Rockwell Automation (Allen Bradley), Lenze, Parker, Yaskawa, Mitsubishi, Omron
authorized CE, issued by ECMG
18-month warranty period
prompt delivery lead time: 1-3 days
supply to REGAL, Ingersoll Rand, Foxconn, Tata group...

Available voltage range:
380 VAC - 480 VAC (323 VAC - 528 VAC): 380 V, 400 V, 415 V, 440 V, 460 V, 480 V

Power range:
11kw ~ 132 kw (15hp ~ 176hp)

25% - 70% energy saving, general above 50% energy saving with the existing parameters.
Improve environmental and production efficiency.
Lower noise levels.
High response.
Long service life and less maintenance cost.
Easy to install, no need to replace the existing motor and oil pump. The total cost of our vector control drive cabinet is 70% lower than synchronous servo drive.

For injection moulding machines, our advanced vector control drive cabinets allow injection molding machine hydraulic systems to vary the amount of fluid being pumped. This reduces the amount of fluid that is throttled and reduces the amount of wasted energy.

injection molding machines, die casting machines.

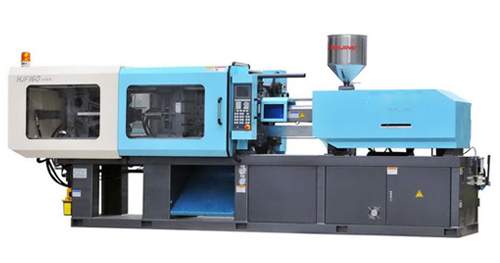

injection moulding machines

PID feedback closed loop control

 Vector Control 1: (optimized V/Hz control)
 Offering excellent vector control performance and insensitive to motor parameters.
 Startup torque: 0.50Hz 180% rated torque
 Speed adjustment range: 1:100
 Speed stabilization precision: +- 0.5%
 0.50Hz controllable motor stable operation with 150% rated torque (large torque at low frequency).

 Vector Control 2 (without encoder speed feedback, sensorless vector control):
 Precise speed sensorless vector control technology realizes AC motor decoupling, enabling the DC motorization of operation control.
 Startup torque: 0.25Hz 180% rated torque (large torque at low frequency)
 Speed adjustment range: 1:200
 Speed stabilization precision: +- 0.2%
  0.25Hz controllable motor stable operation with 150% rated torque.

Application cases about variable speed drives and servo drives to retrofit plastic injection molding machines (injection moulding machines)

Commitment to clients.

Comparison with other brands
