EX-PG01 PG card for AC inverters (AC drives, frequency converters)

PG card

description     technical


1. Power supply: 12V (+-5%), Maximum to 200mA
2. PA+, PA-, PB+, PB-, PZ+, PZ- encoder signal input
3. Up to 80K pulse input
PG card terminals

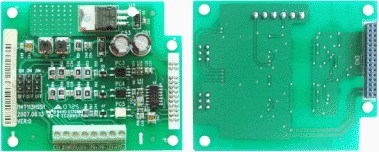

Outline of EX-PG01 PG card (encoder speed feedback card)
encoder speed feedback card

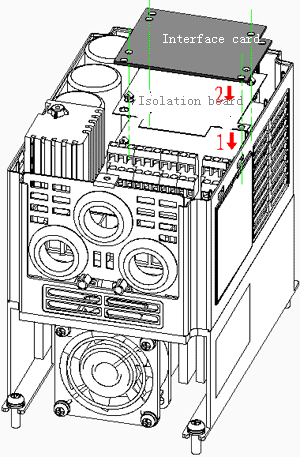

Install schematic
Install schematic

Uninstall schematic
Uninstall schematic

Visit the video for how to install PG card yourself if necessory.

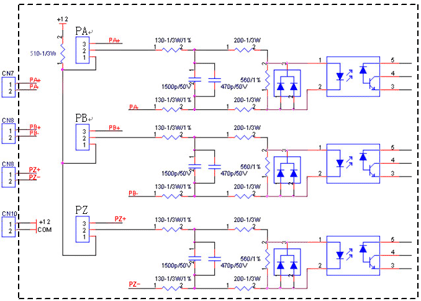

PG card circuit diagram
PG card circuit diagram

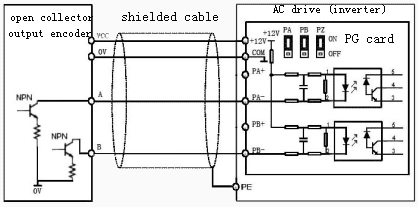

AC inverters (AC drives, frequency converters) connection diagram with open collector output encoder
connection diagram with open collector output encoder

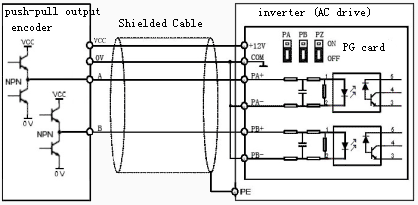

Inverter connection diagram with push-pull output encoder
connection diagram with push-pull output encoder
