PG card for inverters (frequency converters, frequency changers)
If the inverters (frequency converters, frequency changers) needs to transmit the motor rotation speed to other equipment for calculation or speed measurement in addition to vector control 2 with encoder speed feedback, please adopt the V&T EcoDriveCN® feedback frequency division output PG card EX-PG03.

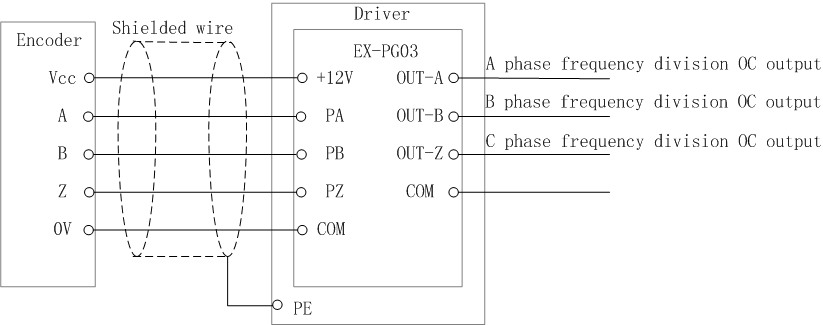

Connection diagram for EX-PG03 PG card (external power supply is not supported)
Are you worried about installing PG card for AC inverter? Don't worry! it's simple and easy! Just watch the video for how to install PG card.
