EX-PG04 PG card for variable speed drive (inverter)
If the variable speed drive (inverter) needs to transmit the motor rotation speed to other equipment for calculation, or speed measurement in addition to vector control 2 with encoder speed feedback, please adopt the V&T EcoDriveCN® feedback frequency division output PG card EX-PG04.

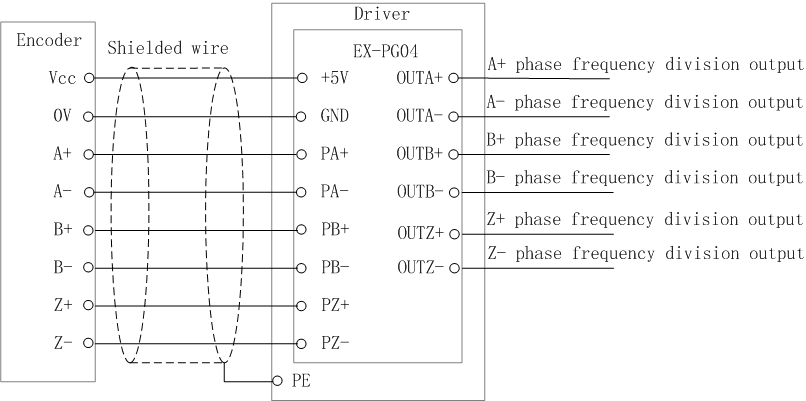

Connection diagram for EX-PG04 PG card, adopting internal power supply

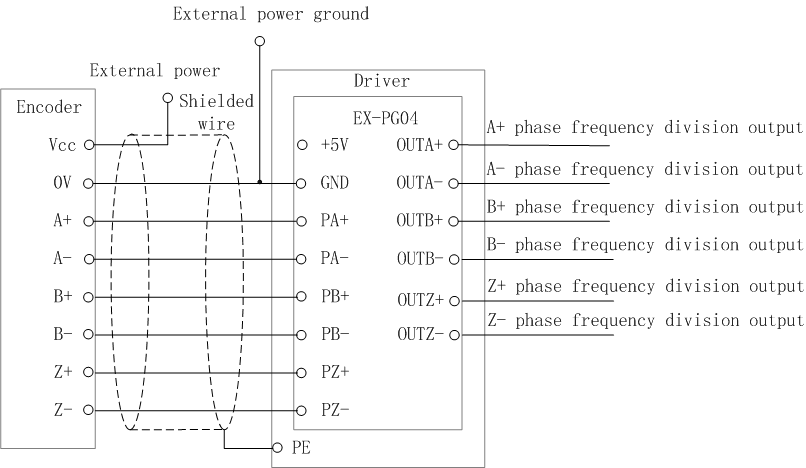

Connection diagram for EX-PG04 PG card, with external power supply
Visit the video for how to install V&T EcoDriveCN® PG card
yourself if necessory.
