Closed Loop/PID Control are incorporated.
Parameters copy.

failure rate: < 0.15%, just the same as other world-class traditional brands, such as Siemens, ABB, Emerson, Schneider, Rockwell Automation (Allen Bradley), Lenze, Parker, Yaskawa, Mitsubishi, Omron
authorized CE, issued by ECMG
18-month after-sale warranty period
delivery lead time: 1-3 days
supply to REGAL, Ingersoll Rand, Foxconn, Tata group...



Applications:
Food and beverage, pharmaceutical, roller presses, musical fountains in civil engineering, material handling, mailing, waste disposal in municipal engineering, large thermal power station, bottling and canning, stationery lines, mining, tunnel boring, steel plant, textile mill, chain conveyors, machine tools (lathe, cutting machine, spindle control, milling machine), air compressors, coal and mineral processing, printing machine, paper making equipments.

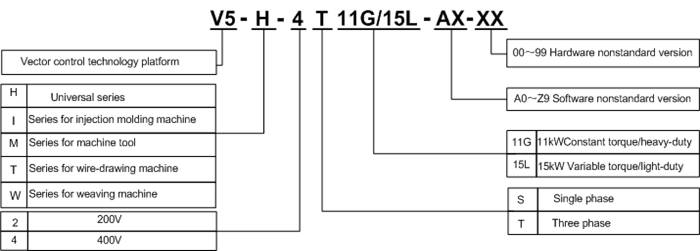

V5-H-4T90G Three-phase 380V-480V sensorless vector AC drive for constant torque/heavy-duty application

Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Motor Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	2.5	3.8	5.5	9	13	17	24	30	39	45	60	75	91	112	150
	Overload capability	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	3.5	6.2	9.2	14.9	21.5	27.9	39	50.3	60	69.3	86	104	124	150	201
Braking unit		Built-in as standard								Built-in as option
Protection class		IP20 (IP65 available)
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	..	..	..	..	..
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capability	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
Protection class		IP20 (IP65 customized for choice)
Cooling mode		Forced air convection cooling

V5-H-4T90G and above power rating sensorless vector AC drives are equipped with external DC reactor as standard
V5-H-4T**L Three-phase 380V-480V sensorless vector AC drive for variable torque/light-duty application

Power(KW)		1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90
Motor Power(KW)		1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	3.3	5.0	7.5	11	17	22	30	36	45	56	72	91	110	142	176
	Overload capability	115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	5.6	8.1	13.5	19.5	26	39	50.3	60	69.3	86	104	124	150	190	235
Braking unit		Built-in as standard								Built-in as option
Protection class		IP20 (IP65 is customized)
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		110	132	160	200	220	280	315	355	400	450	..	..	..	..	..
Motor Power(KW)		110	132	160	200	220	280	315	355	400	450
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	215	253	304	377	415	520	585	650	740	840
	Overload capability	115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	hree-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	195*	232*	282*	352*	385*	491*	552*	624*	704*	792*
Braking unit		External braking unit needed
Protection class		IP20 (IP65 is customized)
Protection class		Forced air convection cooling

V5-H-4T110L and above power rating sensorless vector AC drives are equipped with external DC reactor defaultly.
