Mode control type: Volts per Hertz (V/Hz), vector control, PID feedback closed loop control
Easy to apply many AC inverter drives under similar environment: parameter settings can be copied to another one easily with the keyboard.

Failure rate < 0.15%, just similar as Siemens, ABB, Emerson, Schneider, Danfoss, Rockwell automation (Allen-Bradley), Lenze, Bosch Rexroth, Yaskawa, Mitsubishi, Fuji, Danfoss, Hitachi, Toshiba, WEG
Authorized CE, issued by ECMG
18-month warranty period
Prompt delivery lead time
Supply to REGAL, Ingersoll Rand, Foxconn, Tata group...

You will be interested in more V&T EcoDriveCN® motor soft starters, variable speed drives, EMI power line or load filters, du/dt filters, harmonic filters...



Widely applied in different industries:
Application of V&T EcoDriveCN® variable speed drives
1. Boiler drum, induced draft (ID) fan, mine exhaust blower, dusting fan in iron and steel works;
2. Energy saving air conditioning;
3. Oil injection pump, oil transfer pump;
4. Energy saving air compressor;
5. Circulating pump, cooling water circulation pumps in steel plant, water supply pump, constant pressure water supply, chilled water pump;
6. Musical fountain of municipal engineering;
7. Conveyors, cooling towers;
8. sugar industry (separation of sugar, retrofitting of sugar squeezing mill);
9. mining industry: pumps, grinding mills, coal mine winch;


E5-H-4T7.5G and below power rating vector control universal frequency inverter


E5-H-4T11GL and larger power general purpose enhanced V/F control & vector control frequency inverter

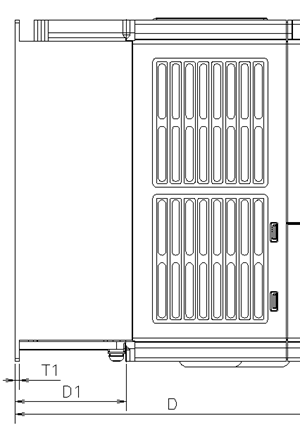

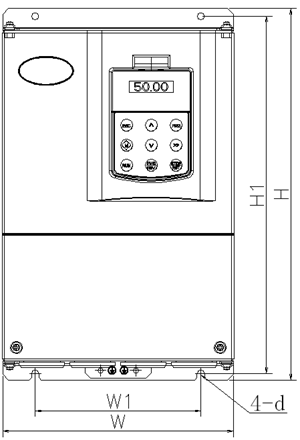

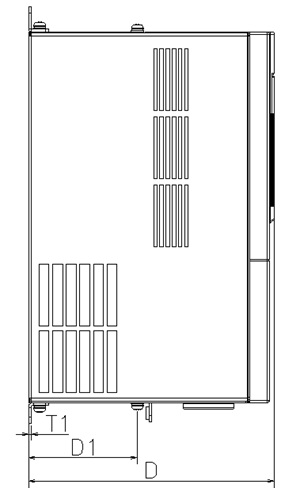

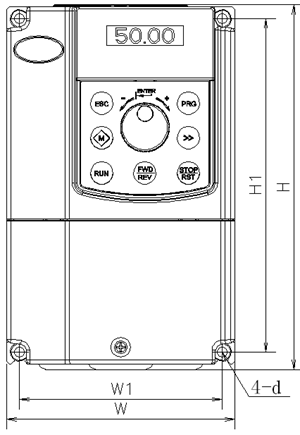

Outline and mounting dimension and approximate weight

Voltage	Type	Outline and mounting dimension								Approximate weight(kg)
		W	H	D	W1	H1	D1	T1	mounting hole d
400V	E5-H-4T0.75G	118	190	155	105	173	40.8	3	5.5	1.5
	E5-H-4T1.5G	118	190	175	105	173	60.5	4	5.5	2.6
	E5-H-4T2.2G
	E5-H-4T3.7G
	E5-H-4T5.5G	155	249	185	136	232	69	8	5.5	4.5
	E5-H-4T7.5G
	E5-H-4T11G	210	337	200	150	324	88	2	7	8.5
	E5-H-4T15G
	E5-H-4T18.5G	289	440	215	200	425	88	2.5	7	17
	E5-H-4T22G
	E5-H-4T30G
	E5-H-4T37G	319	575	212	220	553	90.5	2.5	10	25
	E5-H-4T45G
	E5-H-4T55G	404	615	255	270	590	86.5	3	10	35
	E5-H-4T75G
	E5-H-4T90G	465	745	325	343	715	151.5	3	12	55
	E5-H-4T110G
	E5-H-4T132G	540	890	385	370	855	205.5	4	14	85
	E5-H-4T160G
	E5-H-4T185G
	E5-H-4T200G
	E5-H-4T220G	700	1010	385	520	977	210	4	14	125
	E5-H-4T250G
	E5-H-4T280G
	E5-H-4T315G	810	1358	425	520	1300	210	4	14	215
	E5-H-4T355G
	E5-H-4T400G
	E5-H-4T450G
	E5-H-4T500L

Remark: IP20 (NEMA type 1) as standard, IP65 as optional.
