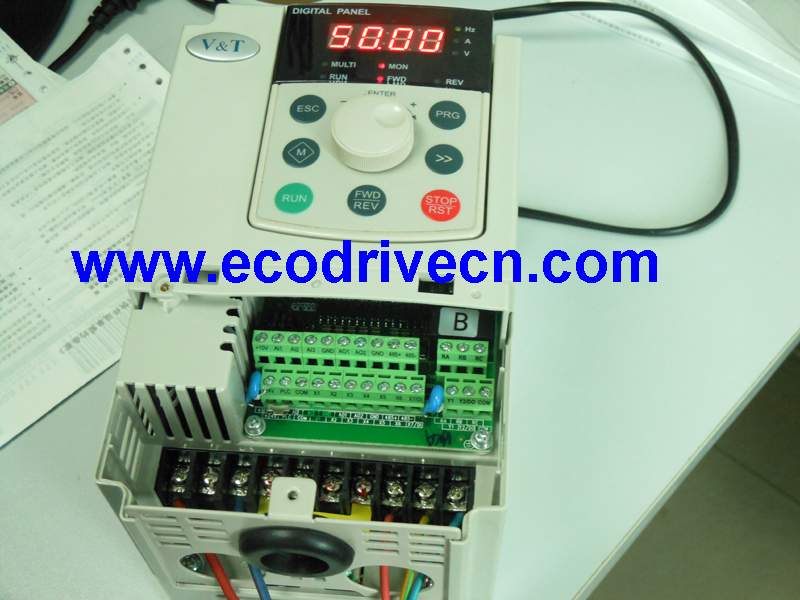

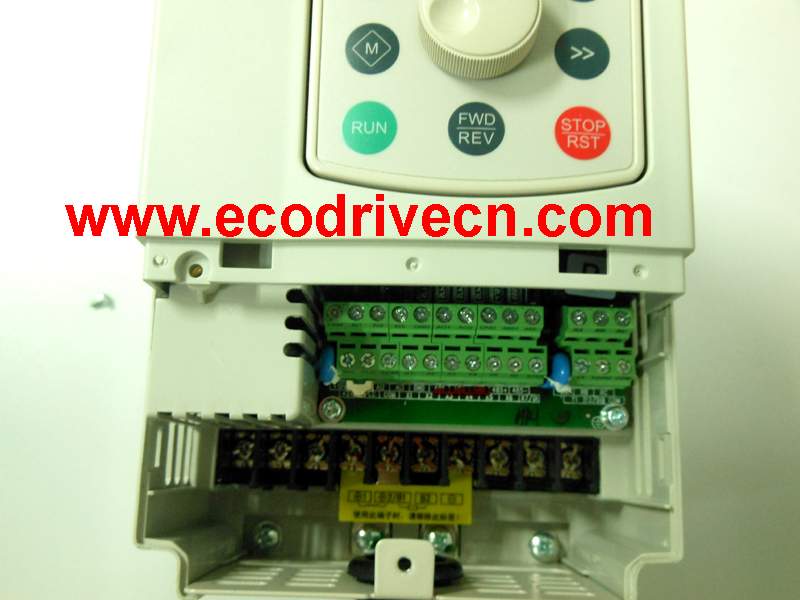

Terminal wiring of V&T EcoDriveCN® variable frequency drives

For E5-H univeral inverters, there are 2 analog inputs, 2 analog outputs, 4 digital inputs, and 1 digital output.

For V5-H vector control frequency inverters, there are 3 analog inputs, 2 analog outputs, 7 digital inputs, and 2 digital outputs.

For V6-H vector control and torque control AC frequency inverters, there are 3 analog inputs, 2 analog outputs, 7 digital inputs, and 2 digital outputs.

For other special drives for different industries, the analog and digital terminals are different. And we may offer the customized terminals for you too!

For more details, please check the wiring diagram of terminals below:

• Terminal wiring of E5-H PID closed loop control general purpose AC frequency inverters (VSD drives)


• Terminal wiring of V5-H sensorless vector control (field-oriented control) variable speed drives


• Terminal wiring of V6-H closed loop vector control and torque control purpose variable speed drives
